Markerboards

e3 Porcelain-Enamel Steel · Series 1000–3500 · CSI Division 10 11 00

Nelson Adams NACO markerboards are engineered for durability, clarity, and long-term performance in educational, commercial, and collaborative environments. The porcelain-enamel steel surface resists staining, ghosting, and everyday wear.

Request a Quote Product Data (PDF)
Product Highlights Construction Quick Links
Magnetic e3 porcelain-enamel steel writing surface for writing and display.
Resists staining and ghosting, with a lifetime warranty on the writing surface.

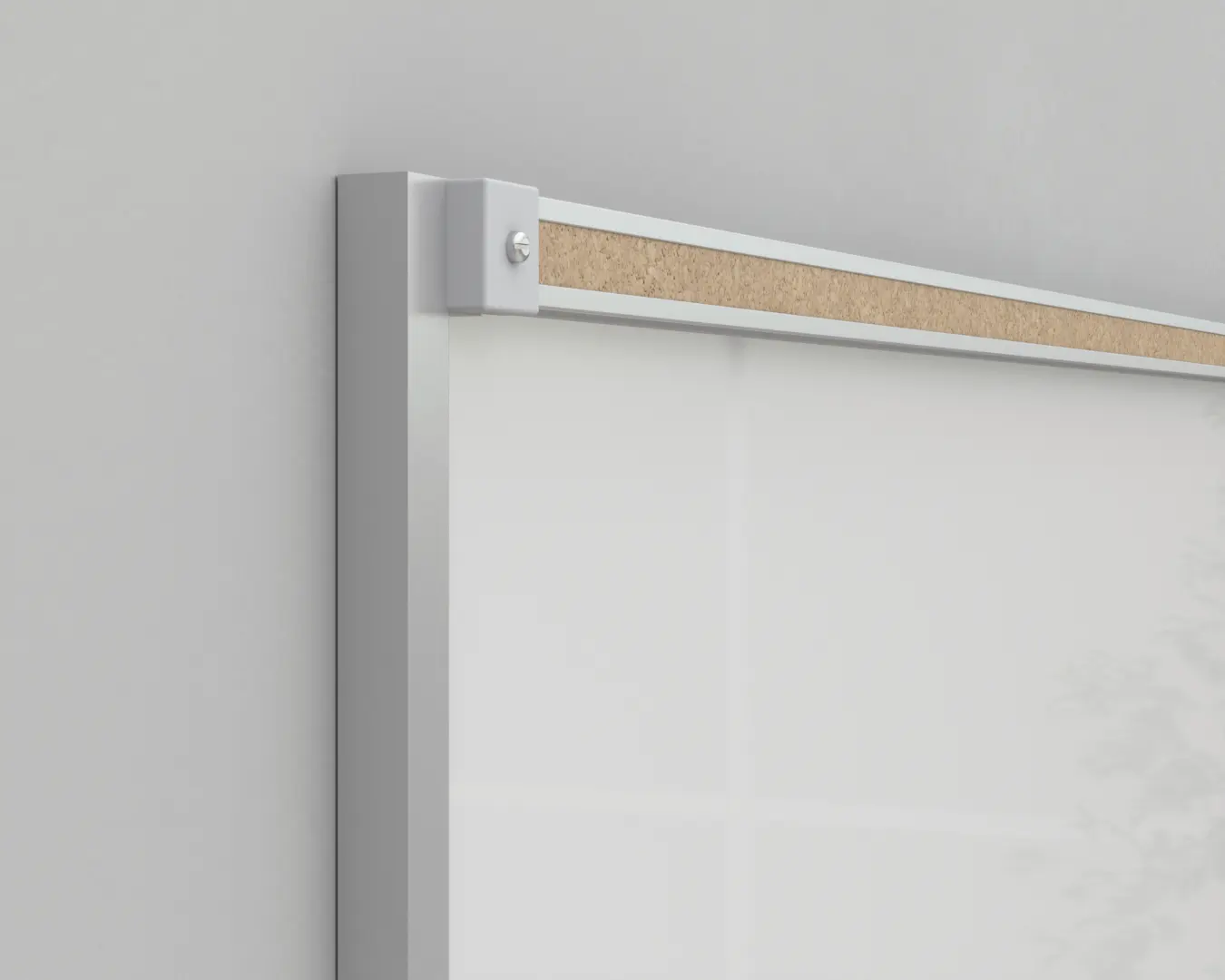

Satin clear anodized aluminum frame with marker tray and 1" natural cork map rail (2" available).
Custom sizes up to 5'-0" high and 16'-0" wide; joined boards available for longer runs.
e3 porcelain on FSC-approved 1/2" particle board core.
0.005" moisture-resistant aluminum backer standard; 0.015" optional.
Two C4 side trims with 3/4" face (C18 1-1/4" on Series 1500, 2500, 3500).
Joint options for boards over 16': spline joint, H-bar, or divider bar.
Downloads & Resources
→
Options & Finishes
→
Specifications
→
Markerboards ‹ ›
Markerboards view 1 Markerboards view 2 Markerboards view 3 Markerboards view 4
Resources

Product Support

Data sheets list construction, finishes, and face options for each series. Official shop drawings are provided in the submittal packet.

Catalog & Technical Library
+
2026 Product Catalog — Markerboards
PDF · p. 15
CAD, BIM, specifications & installation guides
Technical Library →
Shop Drawings
+

Official shop drawings are provided in the submittal packet for each project.

Options

Options & Finishes

Markerboard Colors

WhiteLow Gloss · High Gloss
Light GrayLow Gloss · High Gloss
BeigeLow Gloss · High Gloss

Graphics Options

Polar Grid
Polar Grid
Custom layout
1" Grid
1" Grid
1" × 1"
2" Grid
2" Grid
2" × 2"
Staff Line
Staff Line
10' max length
Specifications

Series & Configurations

Each series pairs a tray style with a trim profile. Custom sizes and configurations are available.

Series
Tray
Trim
Data Sheet
1000
Standard (Blade) Tray
C4 · 3/4" face
Download PDF ↓
1500
Standard (Blade) Tray
C18 · 1-1/4" face
Download PDF ↓
2000
Box Tray
C4 · 3/4" face
Download PDF ↓
2500
Box Tray
C18 · 1-1/4" face
Download PDF ↓
3000
Traditional Box Tray
C4 · 3/4" face
Download PDF ↓
3500
Traditional Box Tray
C18 · 1-1/4" face
Download PDF ↓

Porcelain Finishes

Finish Matte Low Gloss (Satin) High Gloss
Erasability Wet erase only Good dry erasability Excellent dry erasability
Projection Best Good Short-throw recommended

Standard Sizes (Height × Width)

Height Available Widths
5'-0" 4', 5', 6', 8', 10', 12', 14', 16'
4'-0" 4', 5', 6', 8', 10', 12', 14', 16'
3'-0" 4'
2'-0" 3', 4'

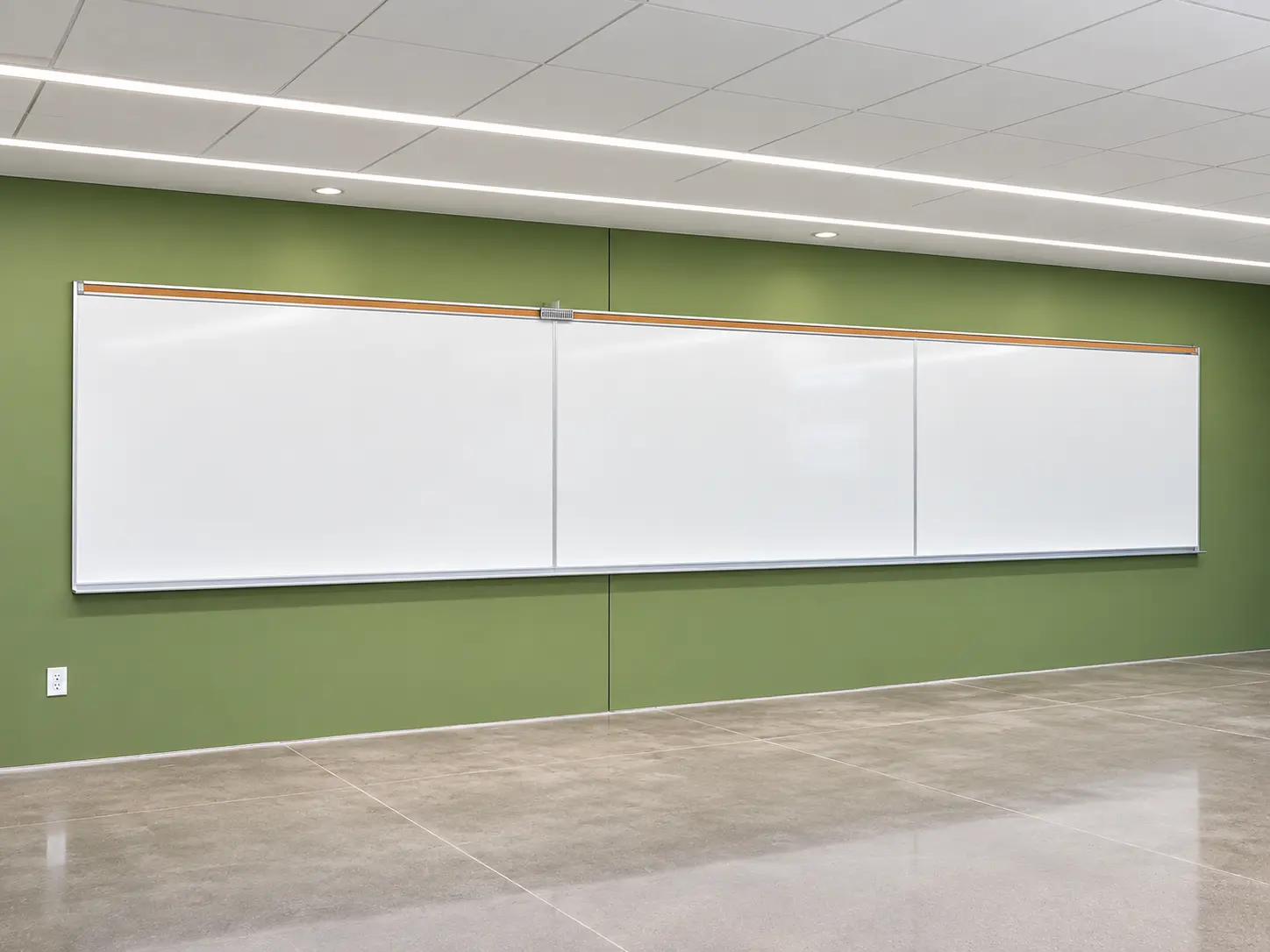

Markerboards in use
Why e3 Porcelain

A surface built for daily use.

Porcelain-enamel steel keeps a smooth, easy-to-clean finish for years of heavy classroom use, and its magnetic surface supports both writing and display.

View in Catalog
Key Features

Built to Perform.

01

Porcelain-Enamel Steel

Durable, magnetic writing surface.

02

Lifetime Warranty

Engineered for long-term performance.

03

Custom Sizes

Up to 5'-0" high and 16'-0" wide.

04

Clear Anodized Frame

Architectural aluminum construction.
